Product Introduction

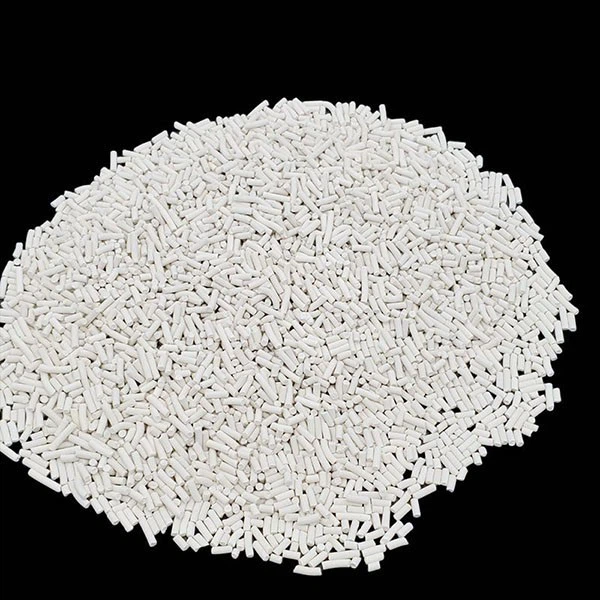

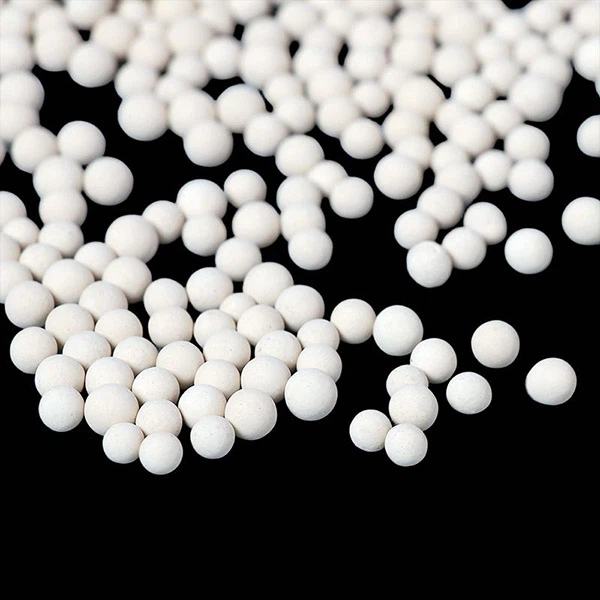

Zeolite Molecular Sieve 5A is a calcium-type A zeolite (CaA) crystalline aluminosilicate adsorbent with a standard pore size of approximately 5 Å, commonly found in spherical or strip-shaped particles.

Technical specification

Type		5A
Nominal Pore Diameter		5 angstroms
Chemical Formula		0.7CaO . 0.3Na₂O . Al₂O₃ . 2SiO₂ . 4.5H₂O(SiO₂ : Al₂O₃ ≈2)
Shape		Bead			Pellet
Application		Hydrogen Production	Liquid Gaseous Drying	Liquid Gaseous Drying	Liquid Gaseous Drying	Liquid Gaseous Drying
Diameter(mm)		1.6-2.5	1.6-2.5	3.0-5.0	1/16"	1/8"
Static H₂O Adsorption(%)	25℃, Saturated NaCl, 24h	≥25	≥22	≥22	≥21	≥21
Static H₂O Adsorption(%)	35℃, Saturated NaCl, 24h		≥21	≥21	≥20.5	≥20.5
Static C₆H₁₄ Adsorption(%)	BET, 0℃, 36mmHg		≥12.5	≥12.5	≥12	≥12
Static N₂ Adsorption(ml/g)	25℃, 760mmHg	≥11
Static CO Adsorption(ml/g)	25℃, 760mmHg	≥28
Bulk Density(g/ml)		≥0.68	≥0.70	≥0.68	≥0.64	≥0.64
Crush Strength(N)		≥35	≥30	≥85	≥30	≥85
Wear Ratio(%)		≤0.3	≤0.1	≤0.1	≤0.2	≤0.25
Water Content(%)		≤1.5	≤1.5	≤1.5	≤1.5	≤1.5
Particle Ratio(%)		≥97	≥98	≥98	≥95	≥94

Product Uses

PSA oxygen production and air separatio

Industrial gas drying

N-alkanes separation

Petrochemical gas purification

Hydrogen production unit gas treatment

Refrigerant and solvent drying

Product Packaging

Standard Packaging: Commonly packaged in 25kg moisture-proof composite bags or steel drums, lined with sealed PE bags.

Sealed Packaging: Moisture-proof and sealed before shipment to prevent moisture absorption during transportation.

Customized Packaging: Available in 500kg/1000kg ton bags or pallet packaging; OEM support available.

Transportation and Storage

Shipping Methods: Sea, land, and air freight are supported. Keep the packaging intact during transportation.

Transportation Precautions: Avoid moisture, rain, and damage to the packaging.

Storage Conditions: Store in a dry, sealed, and well-ventilated environment, away from water sources and high humidity.

FAQ

Q: What is the standard pore size of 5A molecular sieve?

A: The standard pore size is approximately 5 Å (0.5 nm), which can adsorb small molecules and block larger molecules.

Q: What are the common particle sizes?

A: Common sizes are 1.6–2.5 mm spheres, 3.0–5.0 mm spheres, or 1.6 mm strips, which can be selected according to equipment requirements.

Q: Does the product need pretreatment before filling?

A: If the packaging is intact, it can generally be used directly; if it has been exposed to air for a long time, it is recommended to regenerate it before filling.

Q: What is the typical regeneration temperature?

A: Common regeneration temperatures are approximately 200–350℃, depending on the equipment process conditions.

Q: Why does pressure drop increase during use?

A: This is usually caused by pulverization, impurity blockage, or uneven filling. The system needs to be checked or the adsorbent replaced.

Q: Is the product suitable for liquid drying?

A: Yes, 5A molecular sieves are commonly used for deep dehydration of solvents and liquid hydrocarbons.

Q: Is the molecular sieve hygroscopic?

A: Yes, molecular sieves are highly hygroscopic and should be used or resealed as soon as possible after opening.

Q: What is the minimum order quantity?

A: Usually, the minimum order quantity is 1 ton or 1 pallet, but this can be negotiated based on the order details.

Q: What is the typical delivery time?

A: Standard specifications are usually shipped within 7–15 days. Delivery times for large orders will be adjusted accordingly.

Q: Can you provide technical data sheets?

A: Yes, we can provide Technical Data Sheets (TDS), test reports, and application recommendations.
