Al2O3 99% Alumina Inert Ceramic Ball
2. Maintain long-term structural stability under extreme operating conditions;
3. Suitable for extreme high-temperature, high-load, high-corrosion, or ultra-long-life catalytic and adsorption systems.
Description
Technical Parameters
Henan Sinmat Chemical Co., Ltd. is one of the most reliable manufacturers and suppliers of al2o3 99% alumina inert ceramic ball in China. Welcome to buy bulk high quality al2o3 99% alumina inert ceramic ball for sale here from our factory. If you have any enquiry about free sample, please feel free to email us.
Introduction

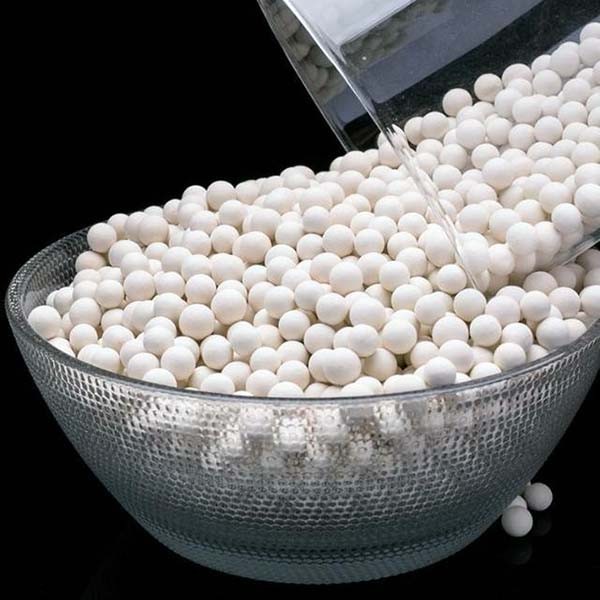

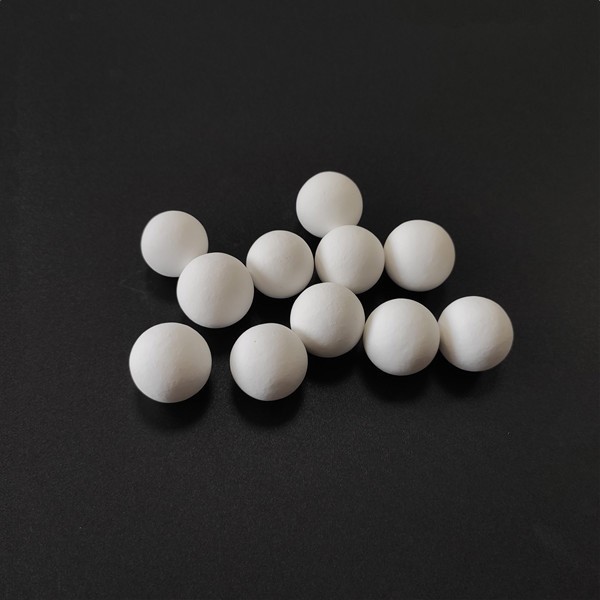

99% alumina inert ceramic balls, are ultra-high performance structural ceramic spheres made with high-purity corundum as almost the only crystalline phase and sintered at an ultra-high temperature of 1700℃-1800 ℃. 99% alumina inert ceramic ball is the top-tier product in the inert ceramic ball system.
99% alumina inert ceramic balls have a single crystal phase, pure grain boundaries, extremely low porosity, and a highly dense structure. Their chemical stability reaches the limit level of ceramic materials, do not undergo volume instability caused by phase transformation, and they can maintain long-term structural stability under extreme operating conditions.
99% alumina inert ceramic balls are used in extreme high-temperature, high-load, high-corrosion, or ultra-long-life (service life ≥ 10–20 years) applications. In engineering applications, they are typically used only in critical stress and high-temperature areas, and represent the highest grade of inert ceramic ball material systems.
Technical Specification
|
Type |
99% alumina inert ceramic ball |
|
|
Apprearance |
White ball |
|
|
AL2O3+SiO2(%) |
>99 |
|
| AL2O3(%) | 99 | |
| Fe2O3(%) | <1 | |
| CaO(%) | <0.1 | |
| MgO(%) | <0.1 | |
| TiO2(%) | <0.1 | |
| K2O+Na2O(%) | <0.03 | |
| H2O Absorption(wt.%) | <0.5 | |
| Bulk Density(g/ml) | 2.0-6.0 | |
| Mohs Hardness(scale) | >7.5 | |
| Thermal Resistance(℃) | >1700 | |
| Acid Resistance(%) | >98 | |
| Alkali Resistance(%) | >95 | |
| Crush Strength(KN) | 1/4 inch(6mm) |
>1 |
| 1/2 inch(13mm) |
>3 |
|
| 3/4 inch(19mm) | >5 | |
| 1 inch(25mm) | >8 | |
| 1-1/2 inch(38mm) | >8 | |
| 2 inch(50mm) | >15 | |
Application
Support Material For Petroleum And Natural Gas Industries
